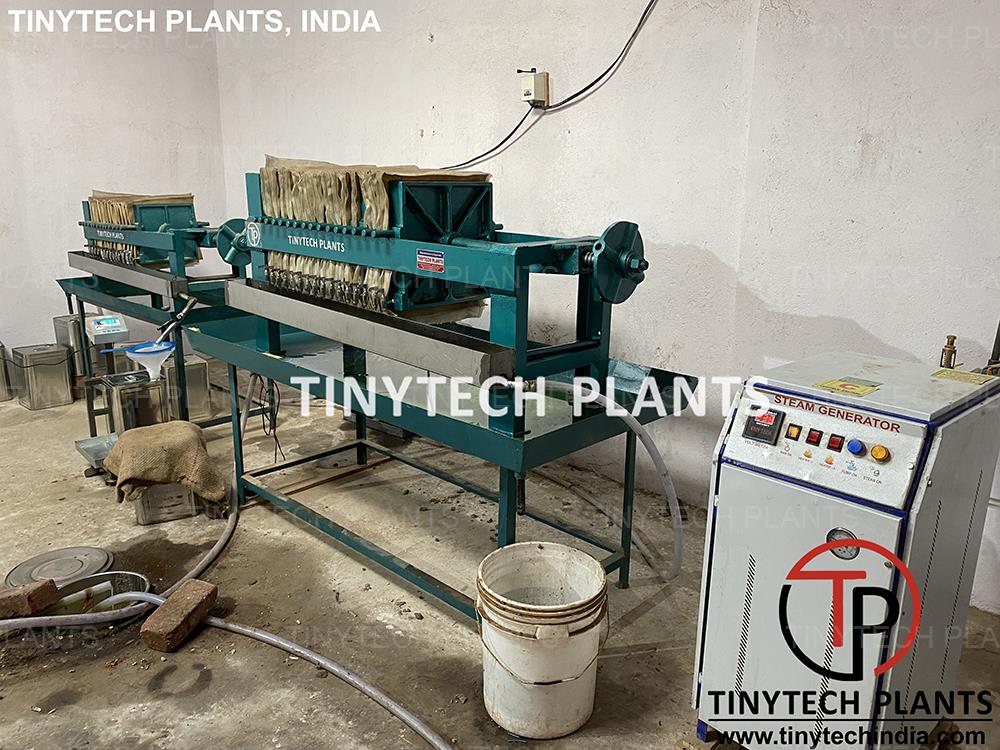

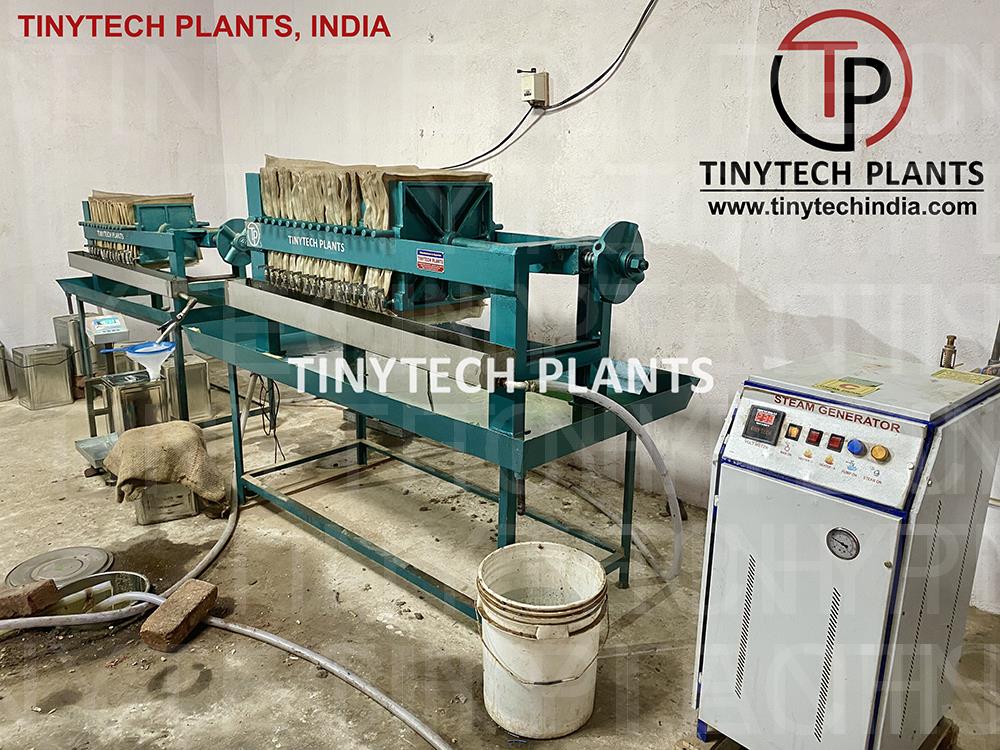

Filter Press

Filter Press, Oil Mill Machinery

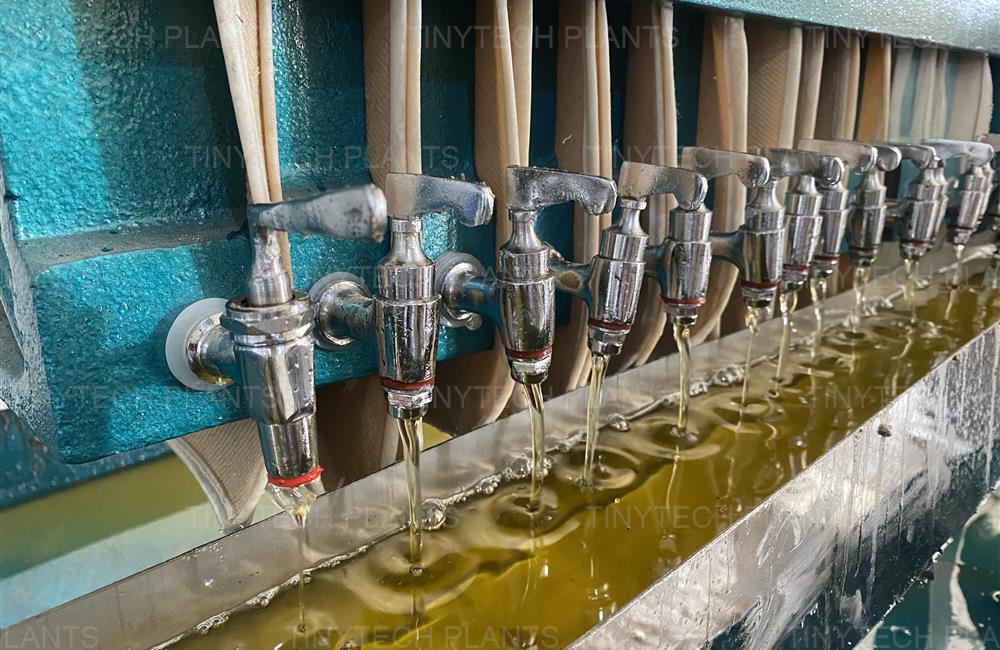

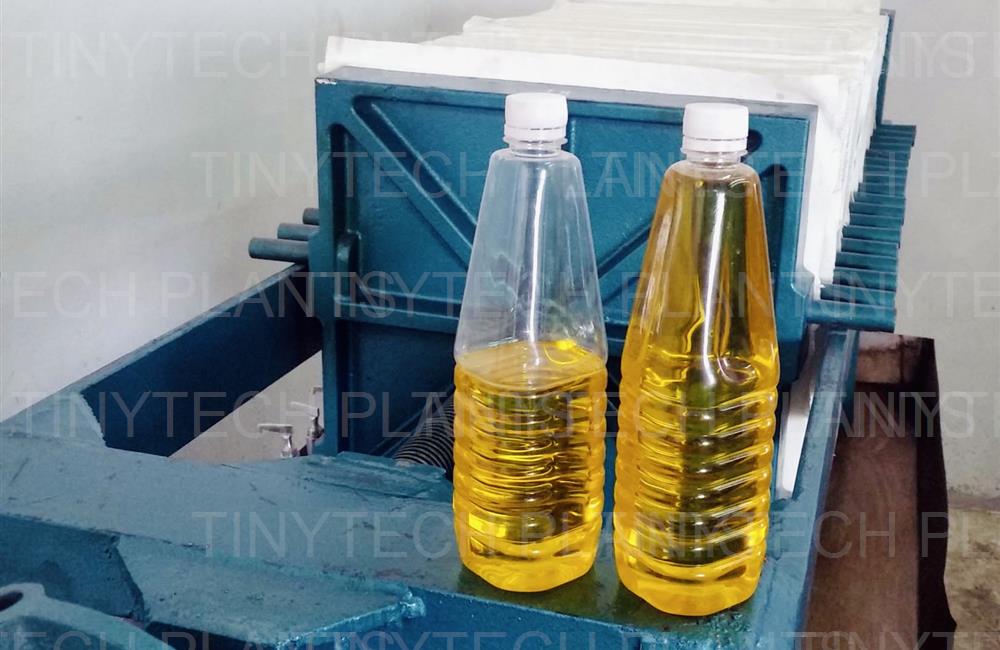

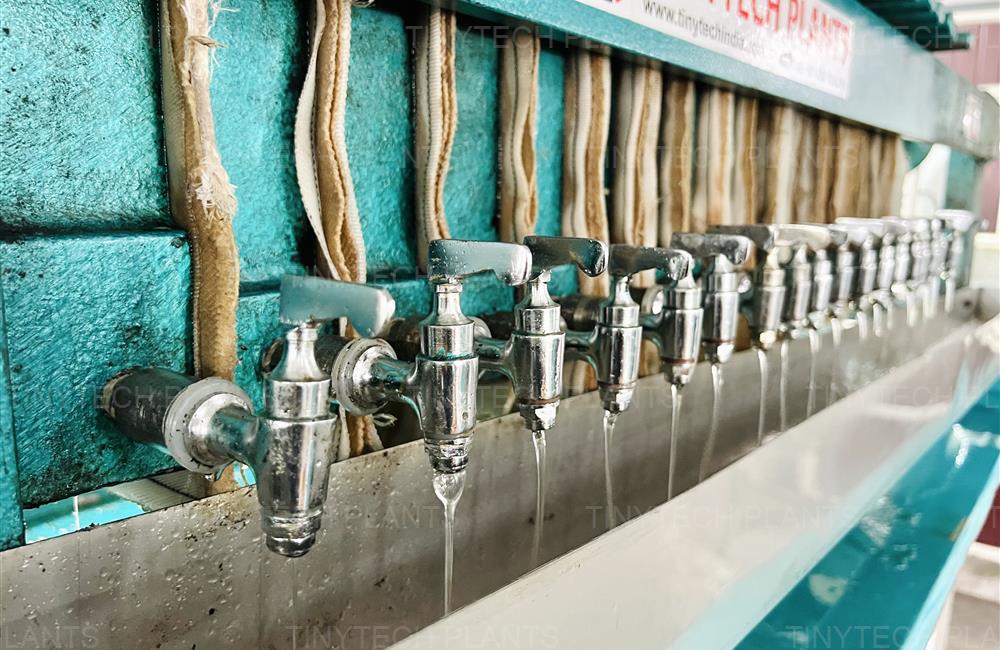

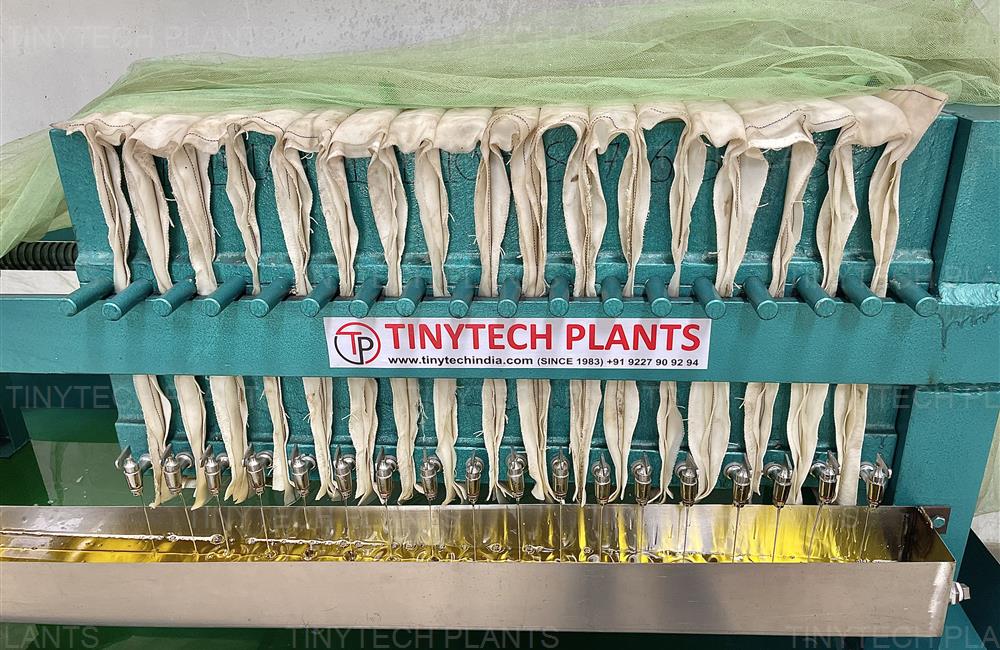

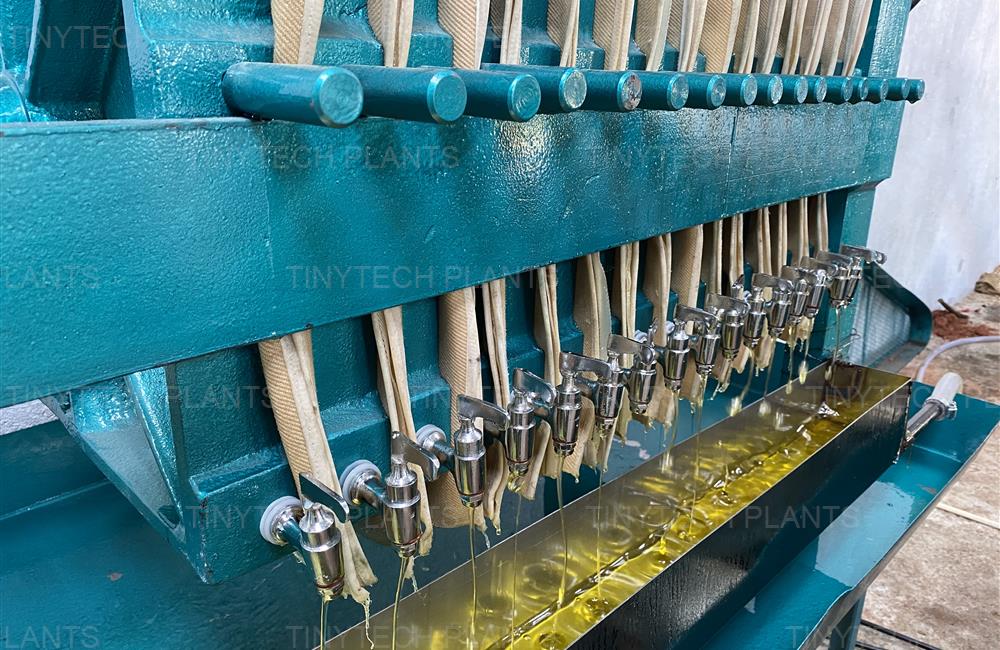

Solid particles are retained in the filter press & extremely pure oil is obtained from filter press. You have to clean filter press every 8 ~ 10 hours & cleaning takes only 20~30 minutes time. We supply different types of clothes to match seasoning effect . There are 3 types of filter clothes; Polyester, Cotton & Poly Propylene. Two sets are fitted on each plate for the best oil output. Combination is either Poly.. + PP OR Cotton + PP. PP is always outside so that dirt will be cleaned very easily from PP cloth. To fit clothes, open centre round nut with square hole, place the cloths and tight by nuts at centre.

We manufacture and export a wide range of filter presses with various capacities. Our oil mill filter is made of high graded steel. These filtration presses are based on the latest technology and deliver one of the best filtration results. Filter fabrics & its thickness plays important role in filtration quality of oil. We select fabrics by studying various criteria such as types of oil, moisture level, viscosity, temperature of oil etc. so customer can beat in the market as quality of filtration is key success for oil miller owners to stay in market & beat competitors.

DVD we provide with oil mill plant gives perfect information how to fit clothes in the plate.

Recently we supplied 450 filter presses to one of the state government in India.

Size Capacity Weight HP of Feed Pump Filtration Area(Sq Mt.)
12" x 12" - 14 plates 50 liters / hour 240 kg 1.5 1.26
16" x 16" - 16 plates 100 liters / hour 475 kg 1.5 2.56
18" x 18" - 18 Plates 150 liters / hour 675 kg 1.5 3.64
20" x 20" - 20 plates 200 liters / hour 890 kg 1.5 5
24" x 24" - 24 Plates 350 liters / hour 1400 kg 2 8.64
30" x 30" - 30 Plates 700 liters / hour 1900 kg. 3 16.87

Note: – It is important to note that the filtration capacity of the filter press may vary depending on the type of oil, viscosity of oil and the % sediments (solid particles) contained in oil.

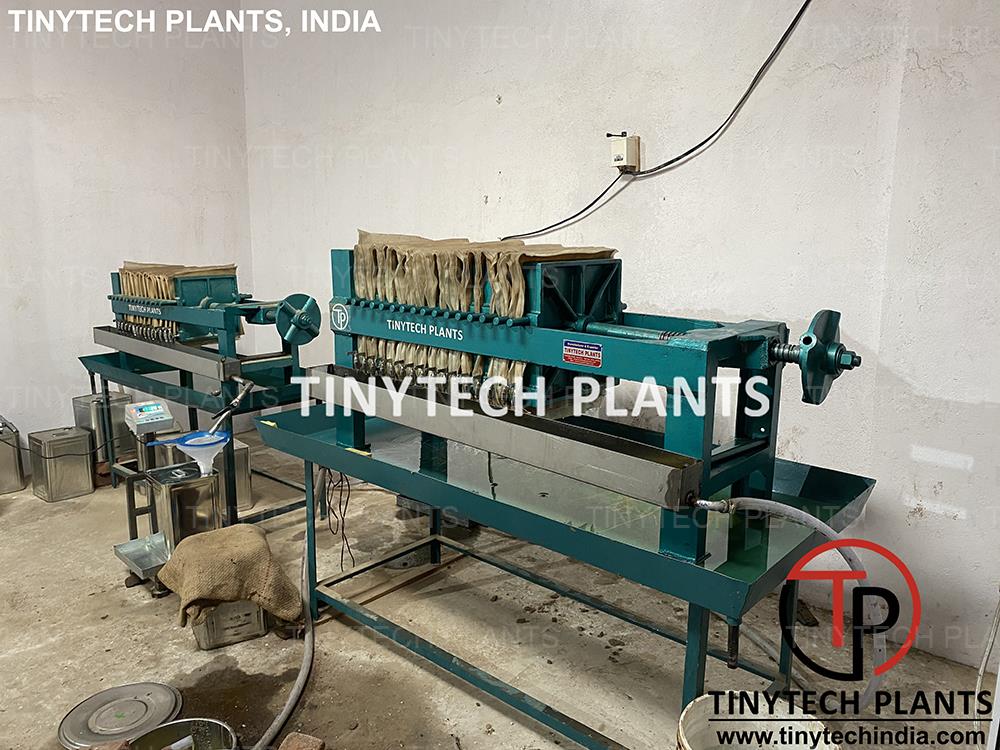

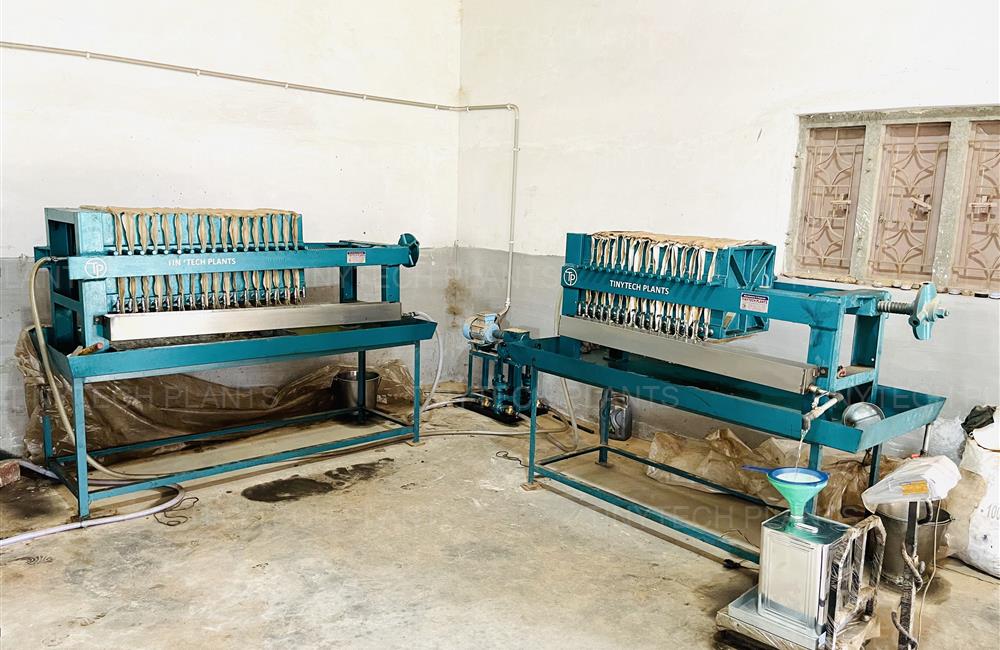

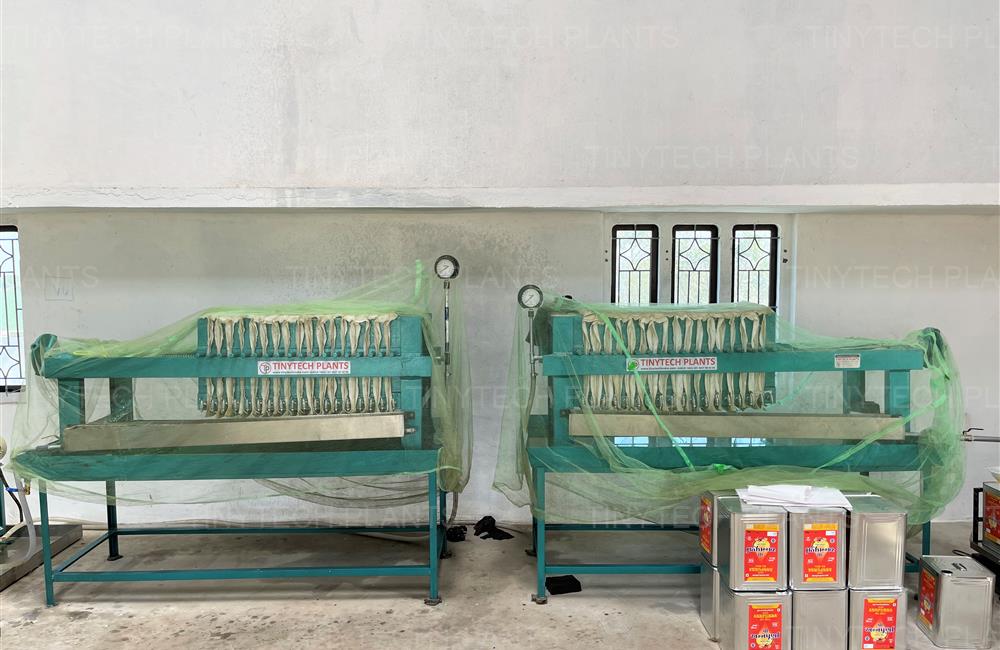

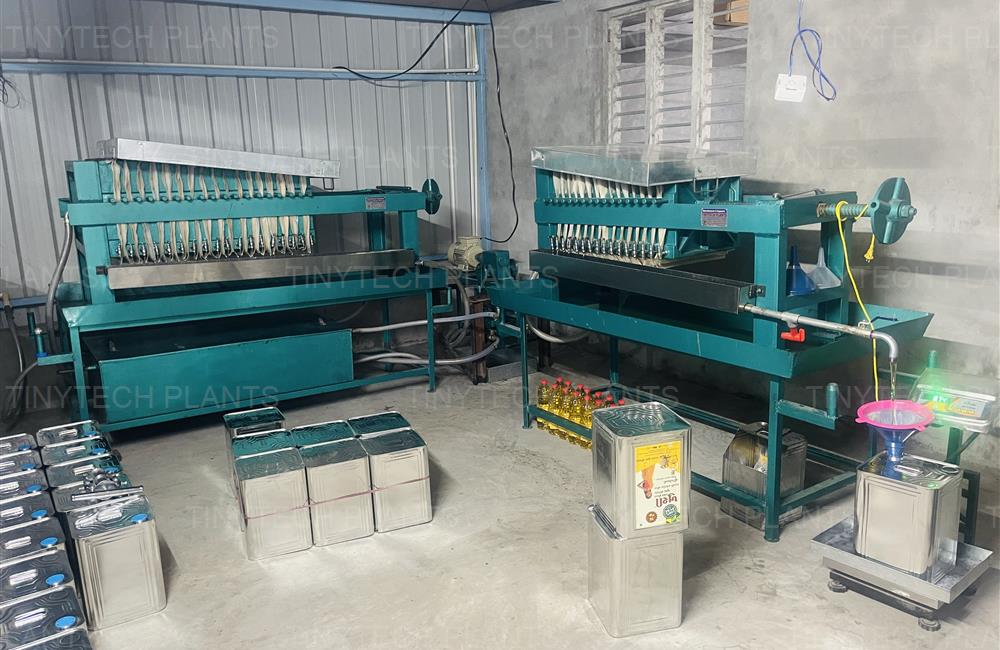

Eye Catching Points Of Tinytech Filter press

  • We are pioneers in fabricated steel structure of filter press.

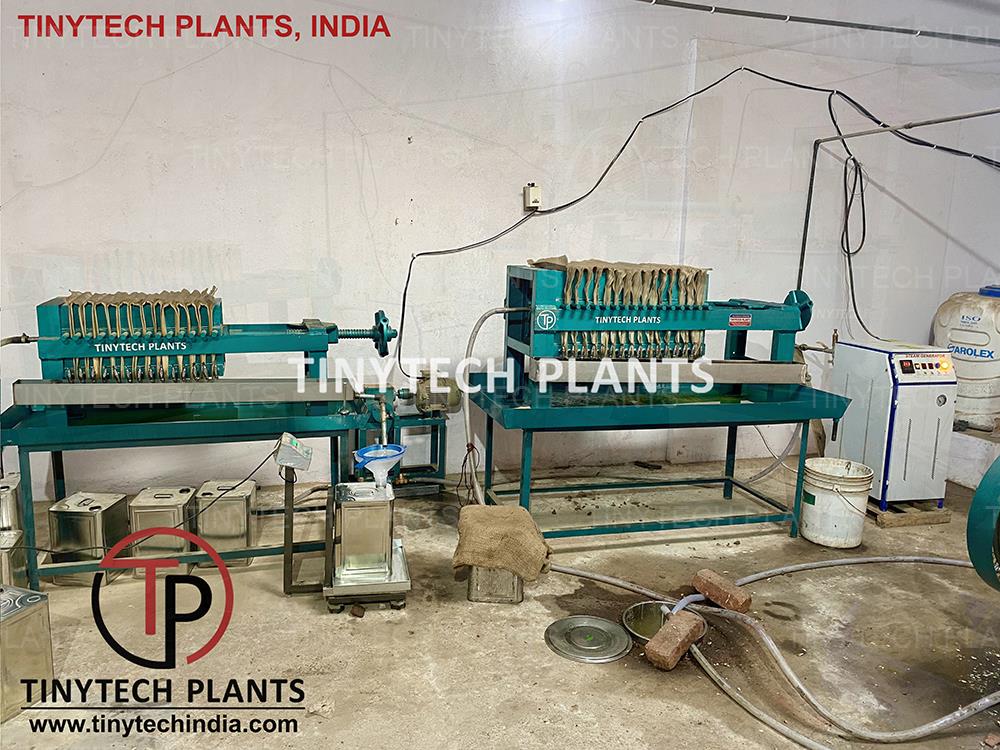

  • We do supply base table to give height to filter press. So no need to construct pillars by bricks & installation time and energy is saved considerably.
  • Accurate machining of plates for leak proof joints to withstand operating pressure.
  • Plates are tilted so that filter clothes can be cleaned easily.
  • Screw thread is machined such that plates are separate with 50% effort compared to other filter presses.
  • Filter cleaning tool (Specially designed with wooden handle) is part of standard supply.
  • Oil collection channel is given SS 304
  • We sell specially designed unique filter pump. Some people insist to use only our filter pump only.
  • Aesthetic color coating to filter press for better look.
