Boiler, Oil Mill Machinery

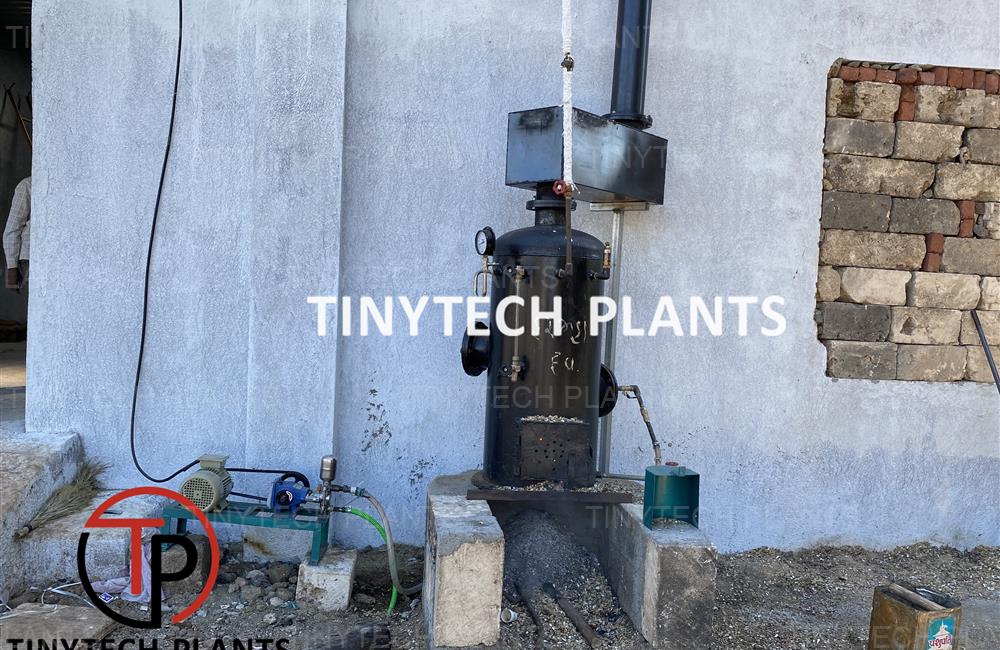

Boiler provides the process steam to the cooking kettle. Husks / wood / coal / any agriculture waste can be used as fuel in the boiler. Water feed pump is mounted separately driven by 1.5 HP motor. Boiler is not required in the crushing of cotton seeds, copra & mustard seeds.

If you wish to use only LPG gas, we can send special boiler with Gas burner to connect with your LPG cylinder. This way you can save 1 operator for fuel filling (agriculture waste). We will not charge anything extra but design of boiler will be such that it will not be suitable for Husks / wood / coal / any agriculture waste. Let us know if you want such boiler.

Some sensitive area / country where boiler is prohibited (for certain seeds) electrical kettle option can be worked out. It is available in two different sizes.

Cooking of the oilseeds is an important process in seed processing. We manufacture latest technology boilers for steam generation that is required in oil mill. The boilers are available in different sizes and capacities. We offer oil mill boilers that are highly efficient and energy saving. Our steam generation oil mill boiler is easy to install, assemble and dismantle. The Oil Mill Boilers come into picture when the heating process in the cooking kettle is carried out using steam. The steam generation boiler will provide the necessary steam required by the heating kettles to cook and heat the oil seeds. Boilers are usually not necessary if the cooking kettle run with the help of electricity.

The steam is produced in the boiler by burning any type of solid fuel like husks, wood or any agricultural waste. A water feed pump is mounted on the top of the boiler. The steam is produced during the process of boiling the water. This steam is required for pre-conditioning and heating the seeds that are placed inside the preconditioners. The steam is let out through an opening which is directly connected to the preconditioner kettle.

MODEL Boiler Size (Diameter)  Volume Cubic Meter Steam Generating Capacity Feed Pump Required Fuel Consumption (Wood)
TPB16 16" 1 50 Kg / Hour 1.5 HP Motor 40 Kg /12 Hours
TPB20 20" 1.5 80 Kg / Hour 1.5 HP Motor 60 Kg /12 Hours
TPB26 26" 1.9 150 Kg / Hour 1.5 HP Motor 80 Kg /12Hours
  • Features of our Tinytech Vertical Type Steam Generation Oil Mill Boilers
  • Suitable for both small scales as well as large scale oil mill units.
  • Husks, wood, oil, any agricultural waste or solid items can be used as fuel.
  • High steam generation rates in the boiler.
  • Low running cost and lower maintenance of boiler.
  • Used to boil almost all types of seeds such as Groundnut, Soyabean, Sesame Seed, Sunflower, Castor, Kernels etc.
  • The oil mill boilers are available in different size as per the oil mill plant requirement.
  • Safety Features are installed in all our Steam Generation Oil Mill Boilers.
