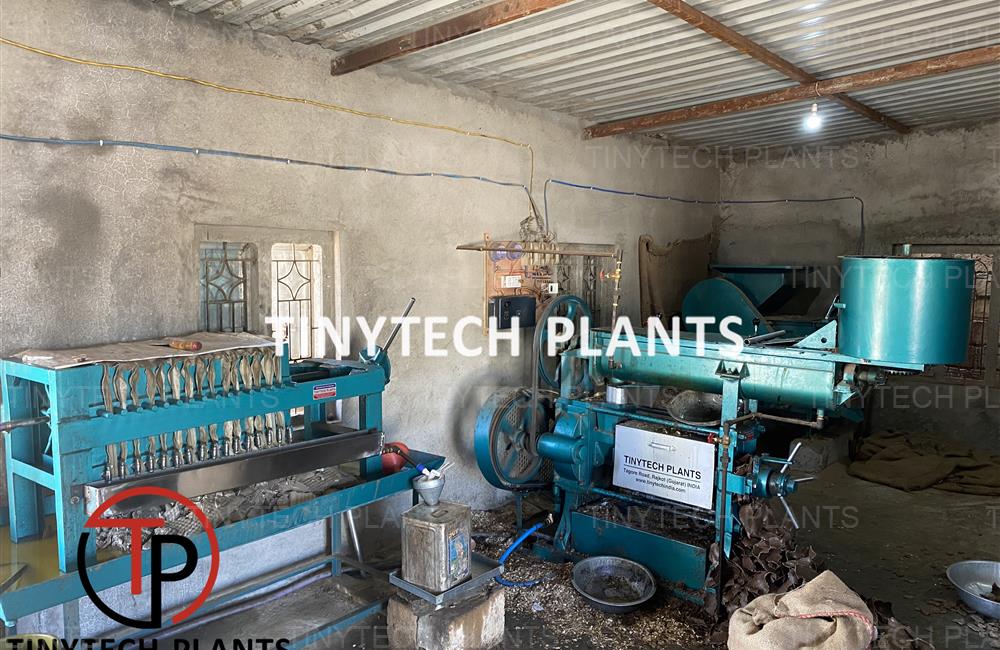

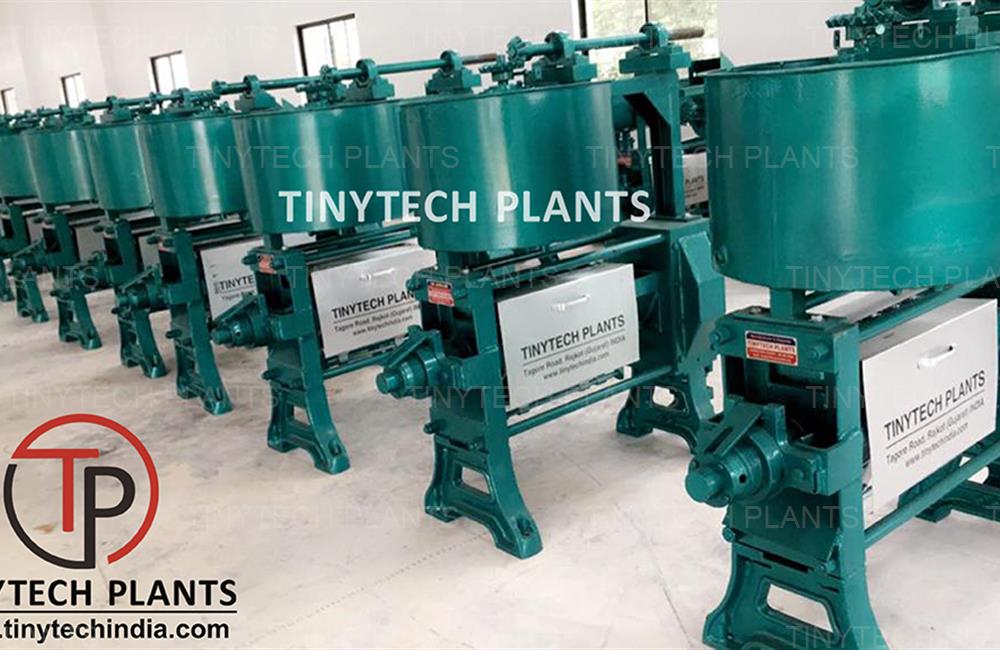

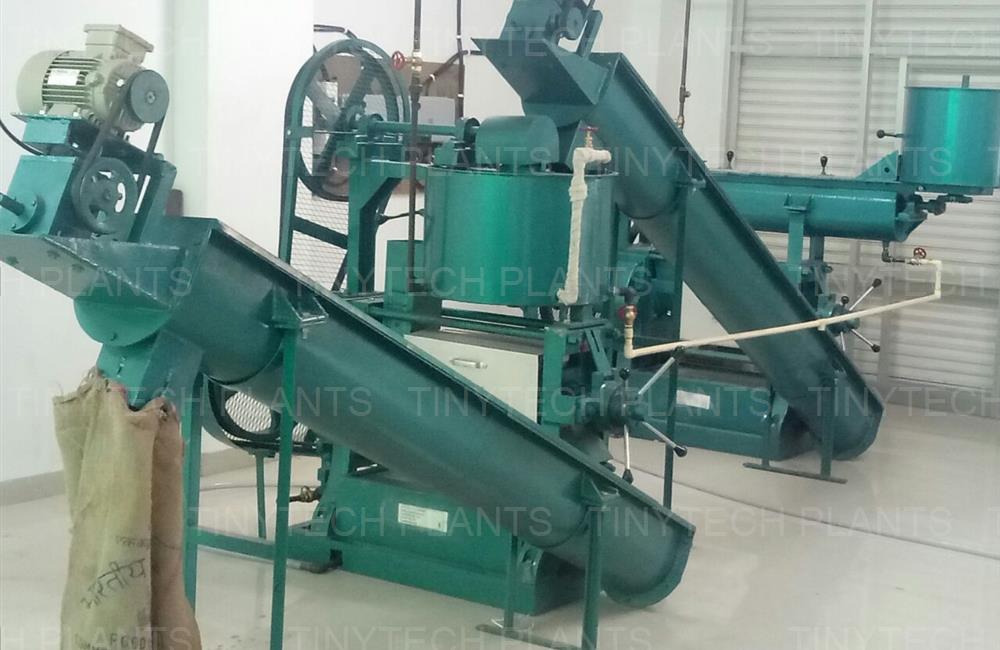

Expeller with Cooking Kettle

Expeller with Cooking Kettle, Oil Mill Machinery

  • Tinytech Mini Oil Mills are presently running in more than 85 different countries of the world.
  • Oil Expellers are also known as the mechanical screw presses or oil press.
  • Our expellers are guaranteed against manufacturing defect to give a trouble free performance and smooth running.
  • By having 35 years of experience in oil mill industry, we make expellers suitable for particular seeds or multiple seeds as per clients requirement and we can provide best possible after sales guidance when customers actually seek the advice.
  • Hundreds of customers across the world have fulfilled their dream by selecting TINYTECH PLANTS as a complete solution provider for their needs to process various seeds / nuts and to produce fresh, pure, natural edible / non edible oil & cake.
  • R&D over the years has made the Tinytech Expellers to deliver one of the best standard of quality and thus clients can enjoy the excellent workability by running our machines !

Expeller

It crushes oil seeds and produces best quality cooking oil and cake. It is the central part of the whole extraction plant.

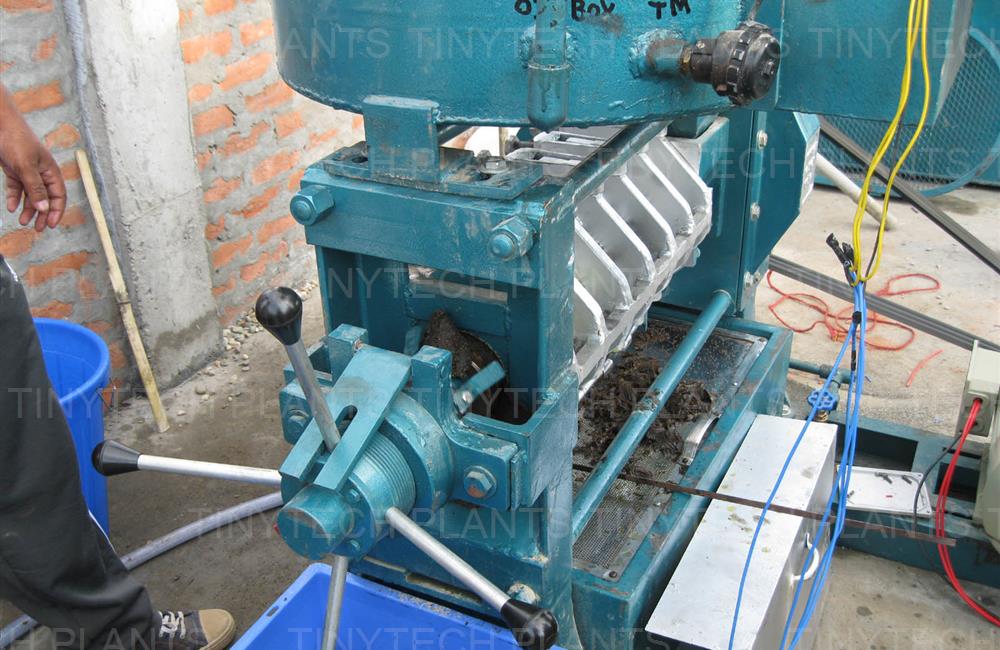

Oil Expeller chamber size 22'' x 4'' crushes about 150 kg oilseeds producing oil and oil cake. Oil falls down in the small rectangular tank which is kept below the expeller and oil cake comes out from another side. Generally, for oil seeds having oil content more than 25% are crushed twice in the expeller for maximum recovery. During the first crushing thickness of cake is kept about 8~10 mm. And during the second crushing thickness of cake is kept about 3~4 mm.

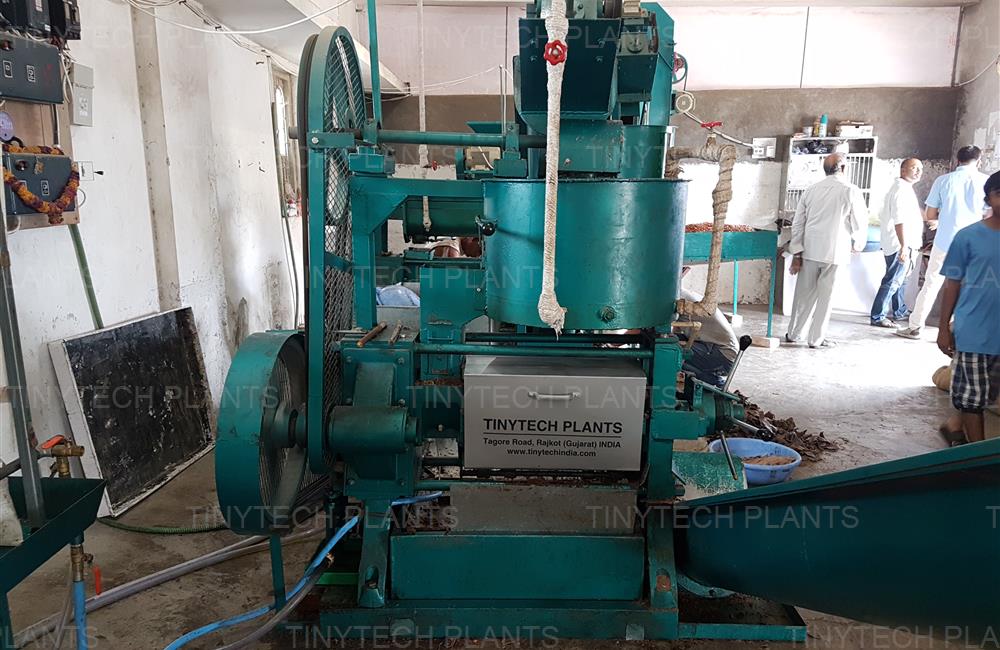

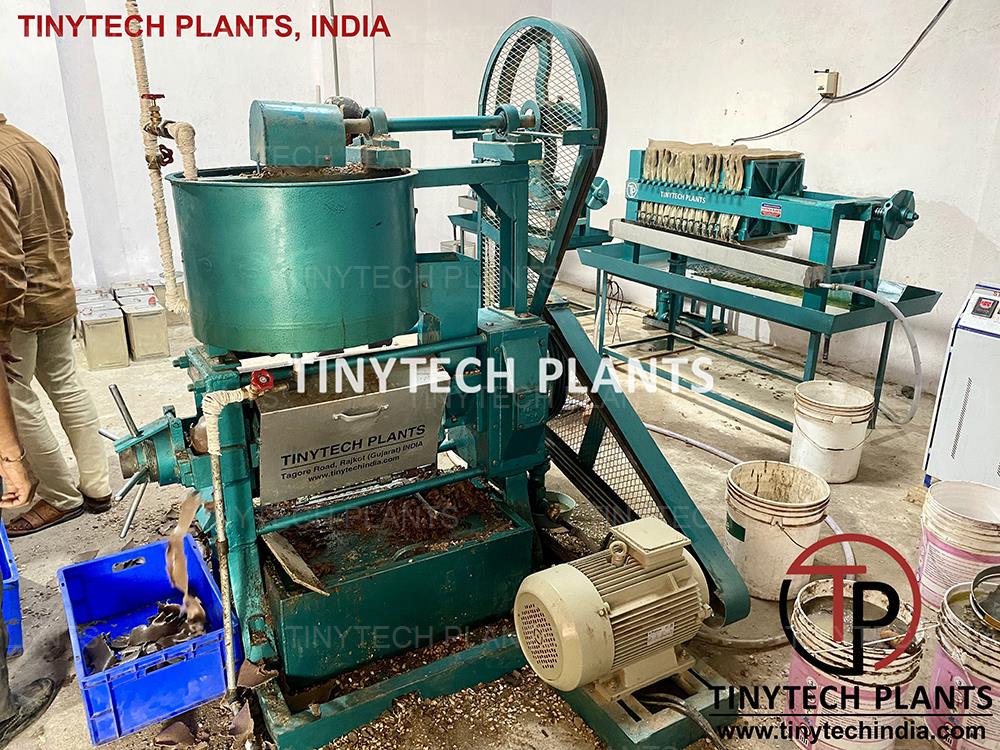

Cooking kettle

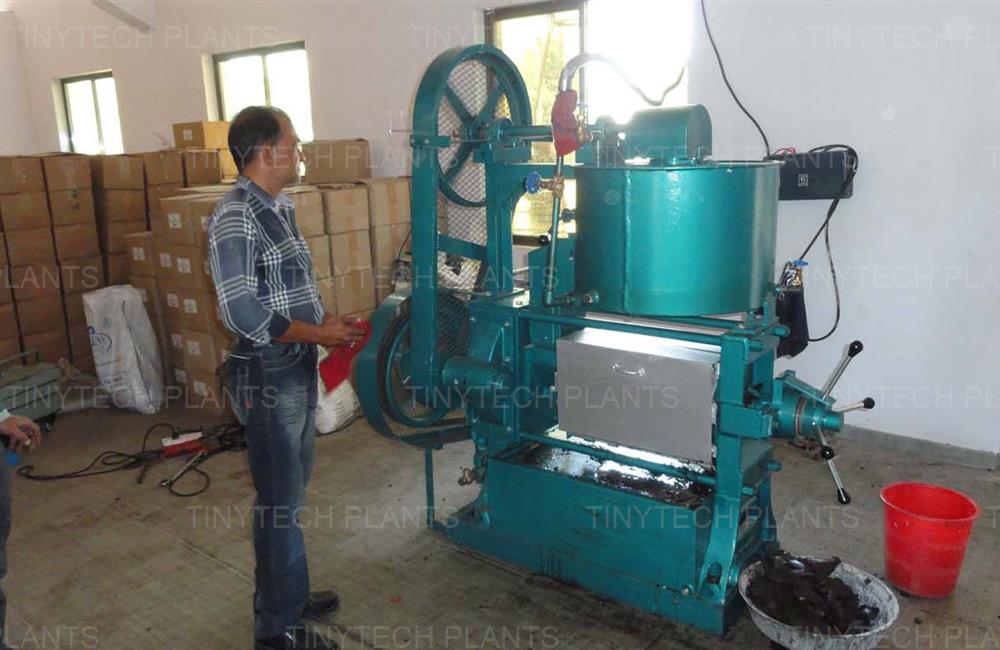

Cooking kettle is mounted on the expeller and it’s driven by expeller. It heats and cooks the oil seeds by outer steam from the boiler or by electricity. A little steam / water is also added to the oil seeds to increase moisture content to optimum level. which makes the crushing process easy and smooth

Cooking kettle has 3 functions,
1. It can hold 40 kg seeds and heated up by steam so that seeds get moisturized till the center of the seed due to steam pressure which is responsible for optimum oil extraction from the seeds.

2. You can increase or reduce flow of seeds going to the expeller so feeding control.

3. Seeds will fall on the magnet before entering the expeller which will save expeller from any iron parts to get damaged as iron part will stick to the magnet. This is an excellent facility with cooking kettle.

The round kettle and long kettle designs are available for the specific oilseed to get the proper results in oil output.

There are mainly 4 types of COOKING KETTLES available with us.

1. Round Feeding Kettle
(It has single bottom, mainly used when steam heating not necessary)

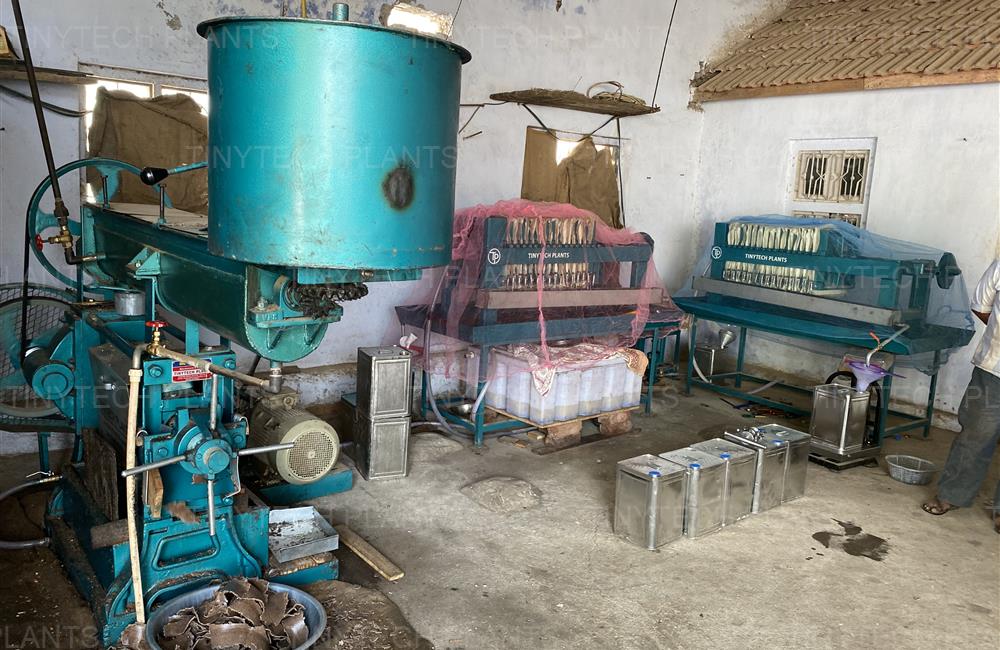

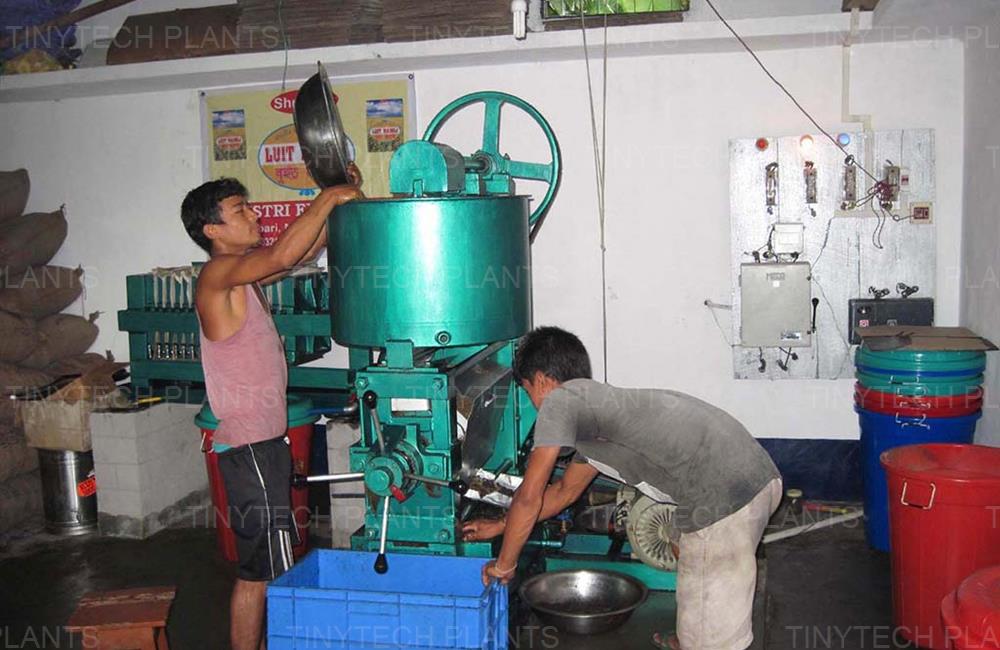

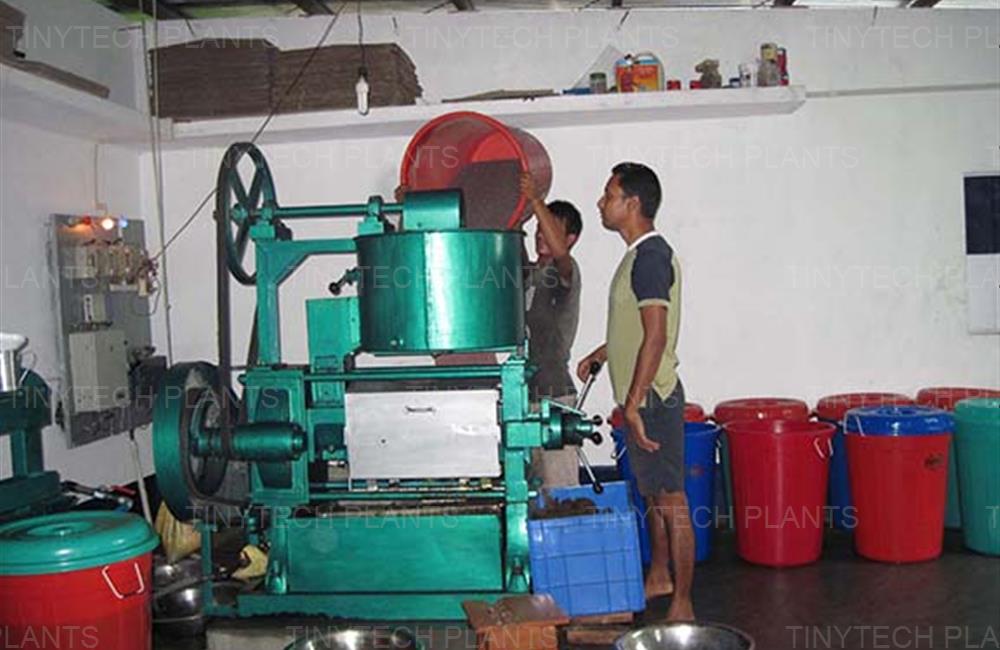

2. Round Cooking Kettle
(It has double bottom steam jacket, mainly used when steam heating will be necessary)

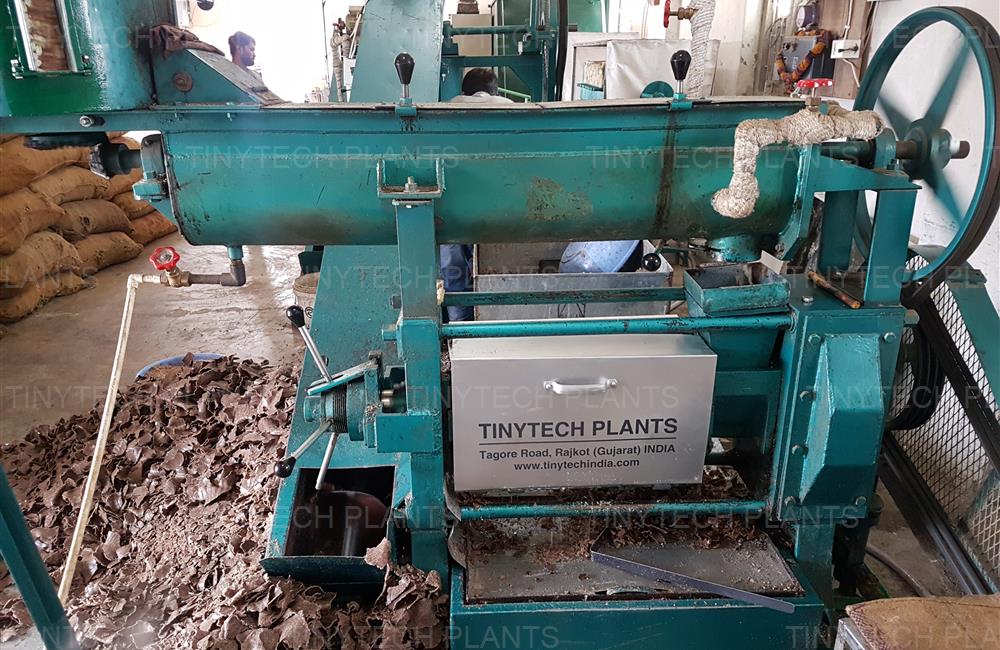

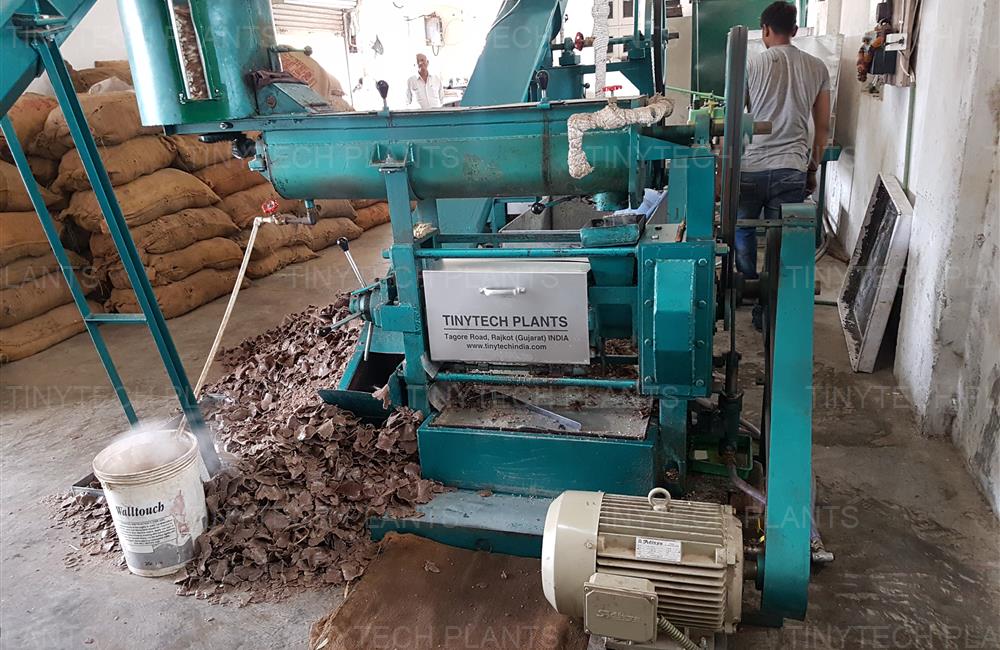

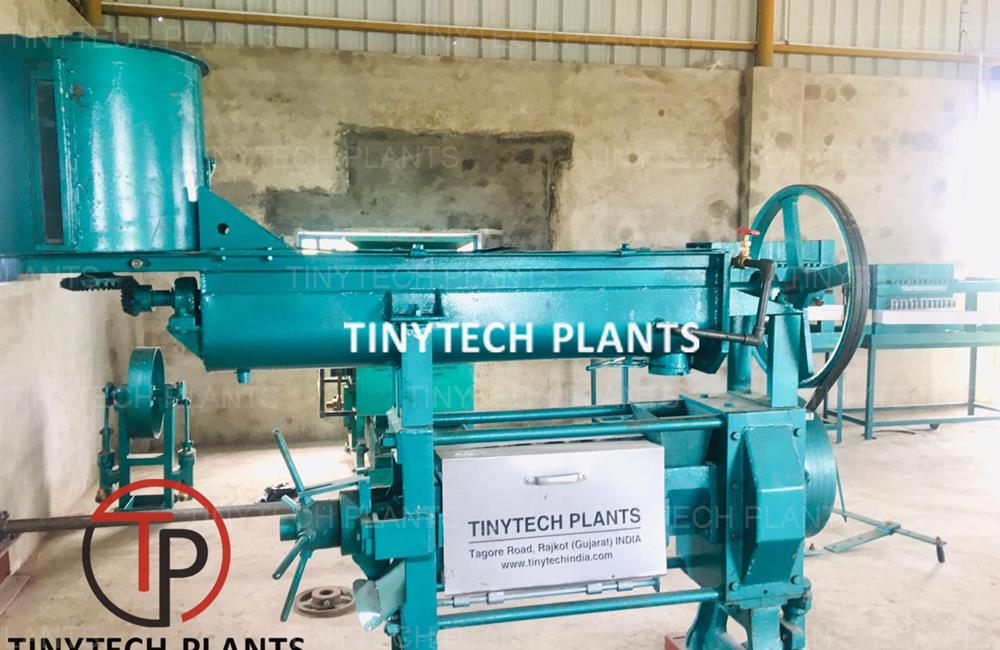

3. Long Cooking Kettle
(It has double bottom steam jacket, mainly used when steam heating is compulsary)

4. Round Electric Cooking Kettle
(It has double bottom oil jacket, mainly used when indirect heating is sufficient & little water adding serves purpose, say for sunflower its ideal, thus boiler can be avoided)

Special Facilities / Features in Tinytech Expeller

  • Chamber cage opens on hinges simply by tilting of chamber halves. Drudgery of lifting of heavy weights of clamping bars and chamber halves are totally eliminated.
  • Thickness of oil cake can be changed while running of expeller. This is unique facility. It enables to change thickness of cake while running of expeller. This is unique facility of Tinytech expeller.
  • Oil pump is now integral part of oil expeller and hence no separate pump required.
  • Due to ready foundation frame, No foundation of any machine required in the ground. So Installation becomes easy & plant can be started within 24 hours. Also you can shift machine easily from one place to another as and when required.
  • 6 taper roller bearings make expeller very sturdy and durable. No ball bearings fitted anywhere.
  • As expeller is very compact, it is economical to import by air freight for land locked countries.
  • Feedbox mouth has been made bigger so that expeller can crush cotton seeds effectively.
  • Main pulley Shaft diameter is 62 mm which is highest in the industry.

Features of Oil Expeller

  • Superior Performance of the Machine
  • Cast Iron Bodies & Base
  • Single Reduction Gear Box with Spur Gears, low maintenace
  • Case Hardened Worm Assembly
  • Superior Quality of Oil & Cake
  • Long Life Span and Durability
  • Latest innovative technology

We supply No. of Oil Expellers as per the plant capacity and requirements.

TECHNICAL SPECIFICATIONS CHART OF OIL EXPELLER
Net weight 500 kg
Capacity 125 - 140 kg / hour
3 Tons / 24 Hours
Volume 1.60 Cubic meter
Electric motor 10 HP or 12.5 HP motor
Chamber Size 22" X 4"
Expeller Chamber Steel Fabricated Chamber
Foundation Frame Provided
Cake Thickness Adjustable

Machine is suitable to crush every kind of oilseeds both edible & non-edible.

OIL SEEDS % Oil Content in Seeds Oil Extraction from 100 Kg of best Oil seeds ( % Oil Output) Crushing Capacity of Oilseeds in Tons / 24 Hours
OIL SEEDS CAN BE CRUSHED USING BOILER
GROUNDNUT 46 to 48 % 42 Kg 3
SESAME 50 to 56 % 50 Kg 3
SUNFLOWER SEEDS 32 to 40 % 32 Kg 3
SOYA BEAN 18 to 22 % 14 Kg 3
CASTOR SEED(nonedible) 40 to 48 % 36 Kg 3
OIL SEEDS CAN BE CRUSHED WITHOUT BOILER
MUSTARD 50 to 56 % 35 Kg 2.5
COPRA 62 to 68 % 62 Kg 2.5
COTTONSEED 18 to 22 % 13 Kg 2
PALM KERNEL 38 to 45 % 36 Kg 3
RAPESEED 38 to 45 % 37 Kg 3
CUMIN SEEDS 32 to 33 % 25 Kg 3
SAFFLOWER SEEDS 35 to 36 % 28 Kg 3
KARDI SEEDS 35 to 37 % 30 Kg 3
MAIZEGERMS 40 to 45 % 35 Kg 3
CANOLA 40 to 42 % 34 Kg 2.2
JATROPHA (nonedible) 32 to 35 % 27 Kg 3
NEEM SEED (nonedible) 46 to 48 % 4 Kg 3

Prominent Salient Benefits of TINYTECH OIL EXPELLERS:

  • Useful for all kinds of Oilseeds.
  • Low Capital Investment in our Machinery
  • Delivers High Returns in Short Span of Time.
  • Due to Graded steel used & appropriate hardness, plant becomes maintenance free.
  • High quality of both-oil & cakes similar to bigger expellers.
  • High yield at low operating cost.
  • Faster money generation as compared to initial investment.
  • Longer life of wearable parts of expeller.
  • Manufacturing & assembling with precision.

Our Tinytech Oil plants is the Solution for promoting Decentralized Units, there by creating more opportunities for livelihood.
